Professional carbon black plant in saudi arabia
Professional carbon black plant in saudi arabia
Professional carbon black plant in saudi arabia
Professional carbon black plant in saudi arabia
Professional carbon black plant in saudi arabia
Professional carbon black plant in saudi arabia
Price
US $48000-55000
Model
HGM
MOQ
1 set

Item specifics

Color
as request
Warranty
1 year
Motor Brand
Siemens
Motor Type
AC
Control System
PLC
Feeding Size
20-45 mm
Output Size
300-2500 mesh
Application
minerals powder grinding
After Sales Service
engineer online or abroad service
Sales Range
worldwide

Review

Description

Introduction of Professional carbon black plant in saudi arabia


Professional carbon black plant in saudi arabia is suitable for the super fine grinding of all kinds of crisp materials whose Moh’s hardness is below 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

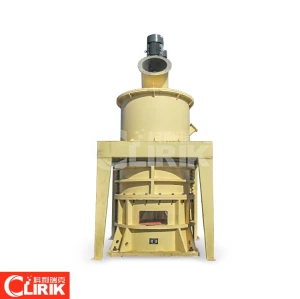

Micro Powder Grinding Mill



Working Principle of Professional carbon black plant in saudi arabia

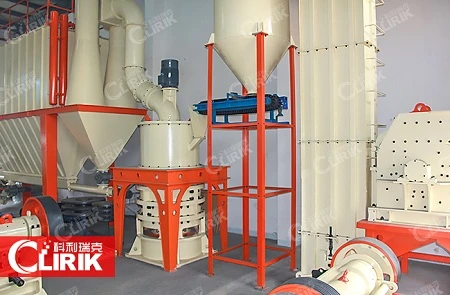

Professional carbon black plant in saudi arabia is mainly formed by mill body, blower fan, ultra-fine analyzer, finished product cyclone container, bag de-duster and air pipe. The elevator, storage bin, electric control cabinet, powder feeder and crusher are optional for the demands of customers.



Micro Powder Grinding Mill

When the Professional carbon black plant in saudi arabia is at work, the main bearing and each dial are driven by electromotor through reducer, and all the grinding rollers are rolling in the ring channels driving by dial through plunger. The materials are driven to the edge of the turn plate by the centrifugal force and fall down into the grinding chambers. The high-pressure air blower constantly inhales air, airflow with crushed materials are brought to classifier whose high-speed impeller will screen the airflow: The unqualified particle size will fall and return to the mill for being reground while the qualified particle size mixed with air will go into the cyclone powder collector. Most of the qualified powders will fall and exit from the discharging valve at the bottom; A small proportion of the fine powders, with airflow, moves to the dust cleaner. The materials from the above two lots are sent by the conveyor to get finished powders packed. In addition, filtered clean air will be emitted from muffler in the end.

Micro Powder Grinding Mill

 Advantages of Professional carbon black plant in saudi arabia


1.The yield is 40% higher than other mills.



2.High utilization rate of Wear material:2-5years.



3.Adjustable particle size:300-2500 mesh.



4.High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.



5.Closed system, so it is the green and ideal equipment for environment protection.


Technology data of Professional carbon black plant in saudi arabia


Model

HGM80

HGM90

HGM100

HGM125

HGM168L

Ring Diameter(mm)

800

900

1000

1250

1680

Ring Number (PCS)

3

3-4

4

4

     4

Roller Number(PCS)

18-21

24-29

28-36

30-44

30-40

Main Shaft Speed (r. p. min)

230-240

 200-220

180-200

135-155

120-130

Input Size (mm)

≤10

≤10

≤15

≤15

≤20

Finished Size (um/mesh)

74-5

(200-2500)

74-5

(200-2500)

74-5

  (200-2500)

100-6

 (150-2000)

100-9

(150-1500)

Capacity (t/h)

0.4-4.5

0.6-6.5

1-9

2-16

3.8-30

Outlet Size L*W*H (m)

13.9*4*6.2

14.7*4.8*7.2

18*4.6*8.6

14*9*10.25

26.3*7.5*11.9



Unit: KW

HGM80

HGM90

HGM100

HGM125

HGM168L

Main Unit

55-75

2*45

132

185-200

315

Classifier

18.5

18.5

30

37-4*15

  5*18.5

Blower

45

55

75

2*45-2*55

2*75-2*90

Crusher

18.5

18.5

18.5

45

75

Bucket Elevator

3

3

4

4

7.5

BeltConveyor Feeder

2.2

2.2

2.2

3

3

Spiral Conveyor

3

3

3-4

2*3

2*5.5

Discharging Valve

2*0.75

1*0.75  1*1.1

2*1.1

2*1.1

2*0.75-2*1.5

Air compressor

11

15

22

2*15-37

55
