2020 new design stone ore grinding mill
- US $48000-55000
- 1 set
- as request
- 1 year
- Motor Brand
- Motor Type
- Control System
- Feeding Size
- 20-45 mm
- Output Size
- 300-2500 mesh
- minerals powder grinding
- After Sales Service
- engineer online or abroad service
- Sales Range

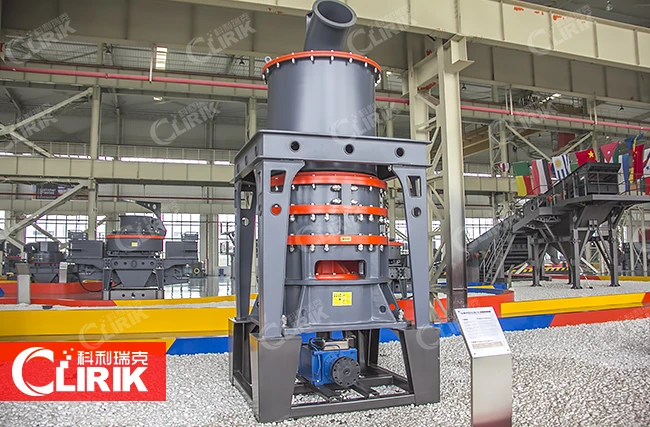

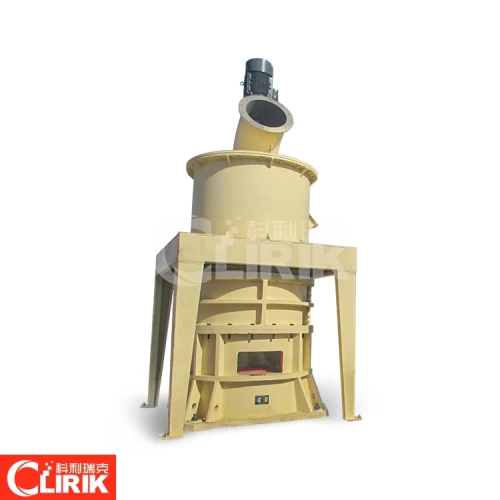

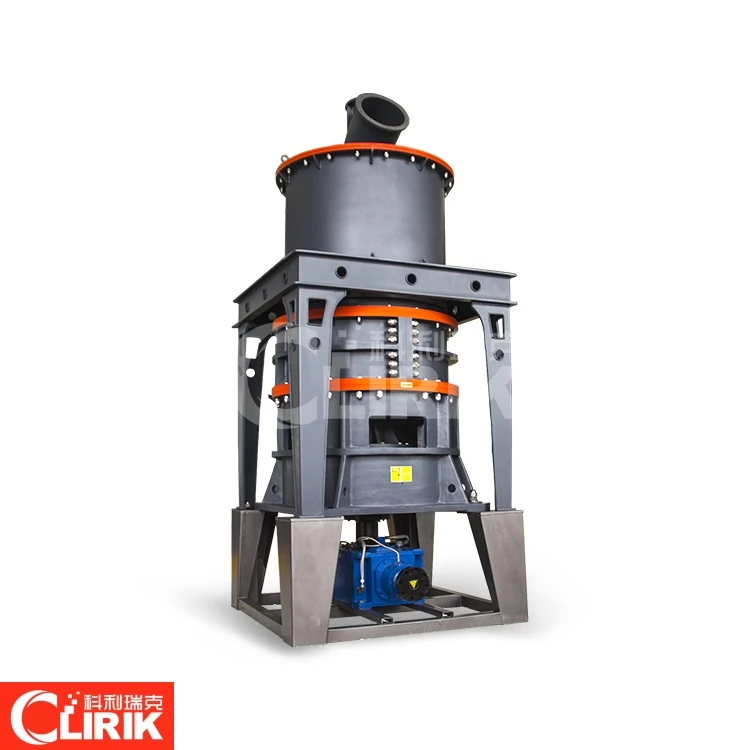

2020 new design stone ore grinding mill
2020 new design stone ore grinding mill Intorduction
As one of the best Micro Powder grinding mill manufacturer or supplier, CLIRIK has developped and manufactured more and more advanced grinding machine. The Micron Powder grinding mill is kind of popular micro milling machine. The ultra fine powder mill is invented by absorbing advantages from the same trade home and abroad.
2020 new design stone ore grinding mill is suitable for the super fine grinding of all kinds of crisp materials whose Moh’s hardness is below 7, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

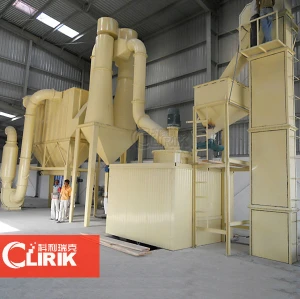

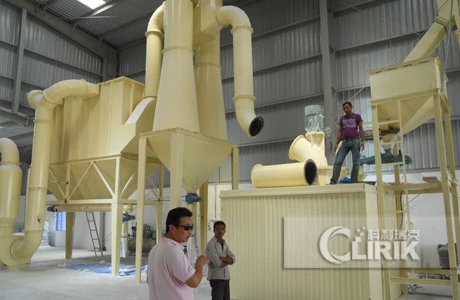

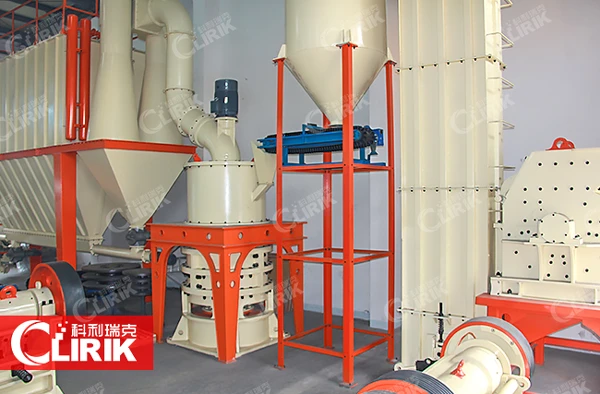

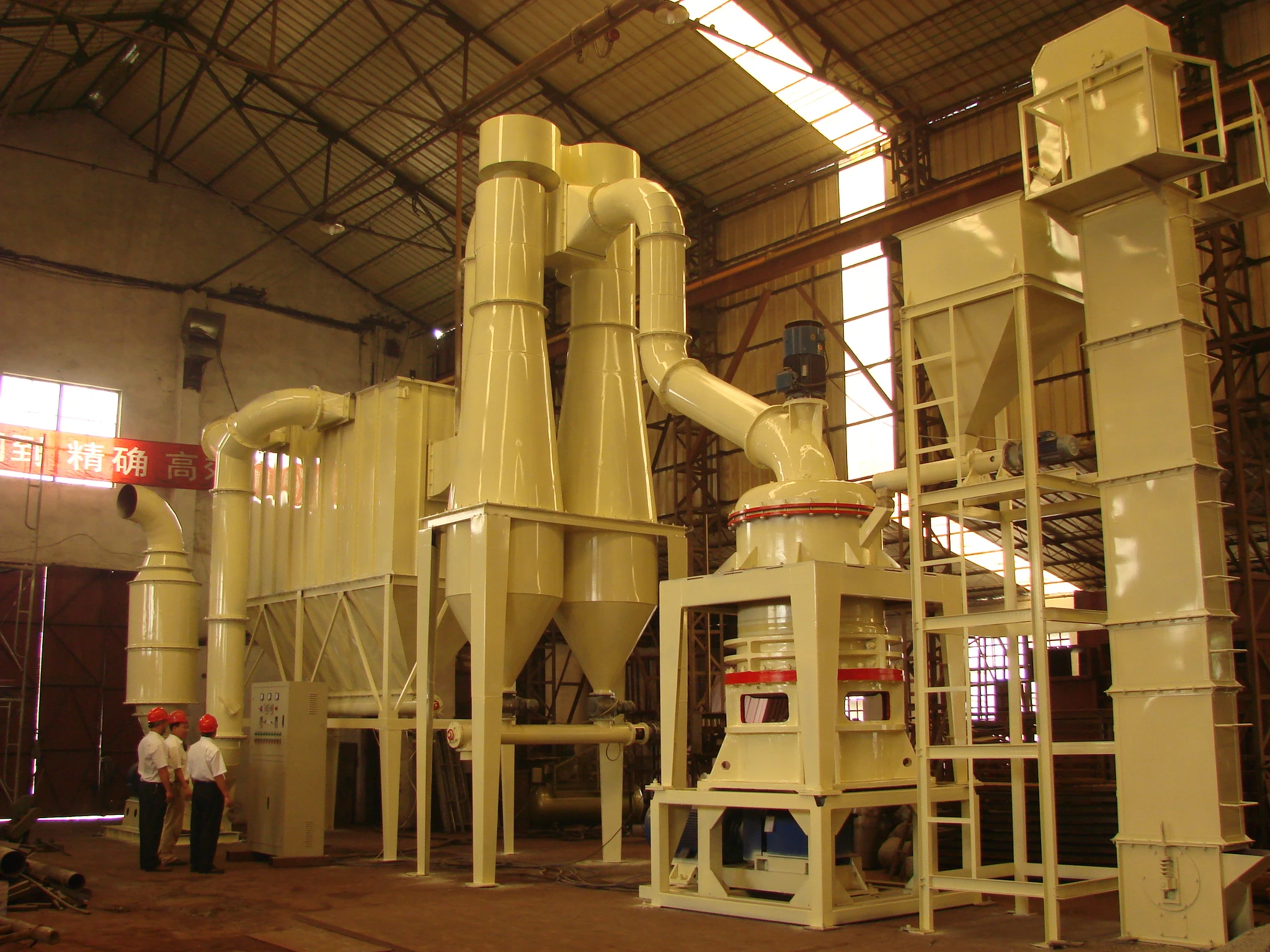

2020 new design stone ore grinding mill Working Principle
●The crusher will crush the big materials into small ones, and then the elevator will send them to the hopper.
●The vibrating feeder will send the materials to the middle of first dial evenly.
●The motor of main equipment drives the main shaft and dial through reducer, and the dial drives numbers of rollers moving in the ring channels via pins.
●The materials will be driven to the edge of dial by centrifugal force and fall down into the ring, crushed and grinderd by roller, and become powder after production of three rings.
●The high pressure centrifugal blower will inhale air from outside and bring the crushed materials to classifier.
●The rotating turbo in the powder collector will make the coarse materials return to the mill and regrounded, while the fineness will mix with the air and go into the cyclone and be discharged in the discharge bin, which is at the bottom of it.
●The air, which mixed with very little fineness, will be purified by impulse duster and discharged by blower and muffler.
2020 new design stone ore grinding mill Advantages
1. The yield is 40% higher than other mills.
2. High utilization rate of Wear material:2-5years.
3. Adjustable particle size:325-3000mesh.
4. High safety and reliability. The design of the mill is rigorous, so no screw loosening to damage the machine.
5. Closed system, so it is the green and ideal equipment for environment protection.
6. Environment-friendly：The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.
2020 new design stone ore grinding mill Technology Data
|Ring Number (PCS)||3||3-4||4||4||4|
|Main Shaft Speed (r. p. min)||230-240||200-220||180-200||135-155||120-130|
|Input Size (mm)||≤10||≤10||≤15||≤15||≤20|
|Finished Size (um/mesh)||74-5|
|Outlet Size L*W*H (m)||13.9*4*6.2||14.7*4.8*7.2||18*4.6*8.6||14*9*10.25||26.3*7.5*11.9|
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on.Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front.
we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.
We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment,optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
1. What advantages does your 2020 new design stone ore grinding mill?
The main advantage of our 2020 new design stone ore grinding mill over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.
2. Can you guarantee the quality of your 2020 new design stone ore grinding mill？

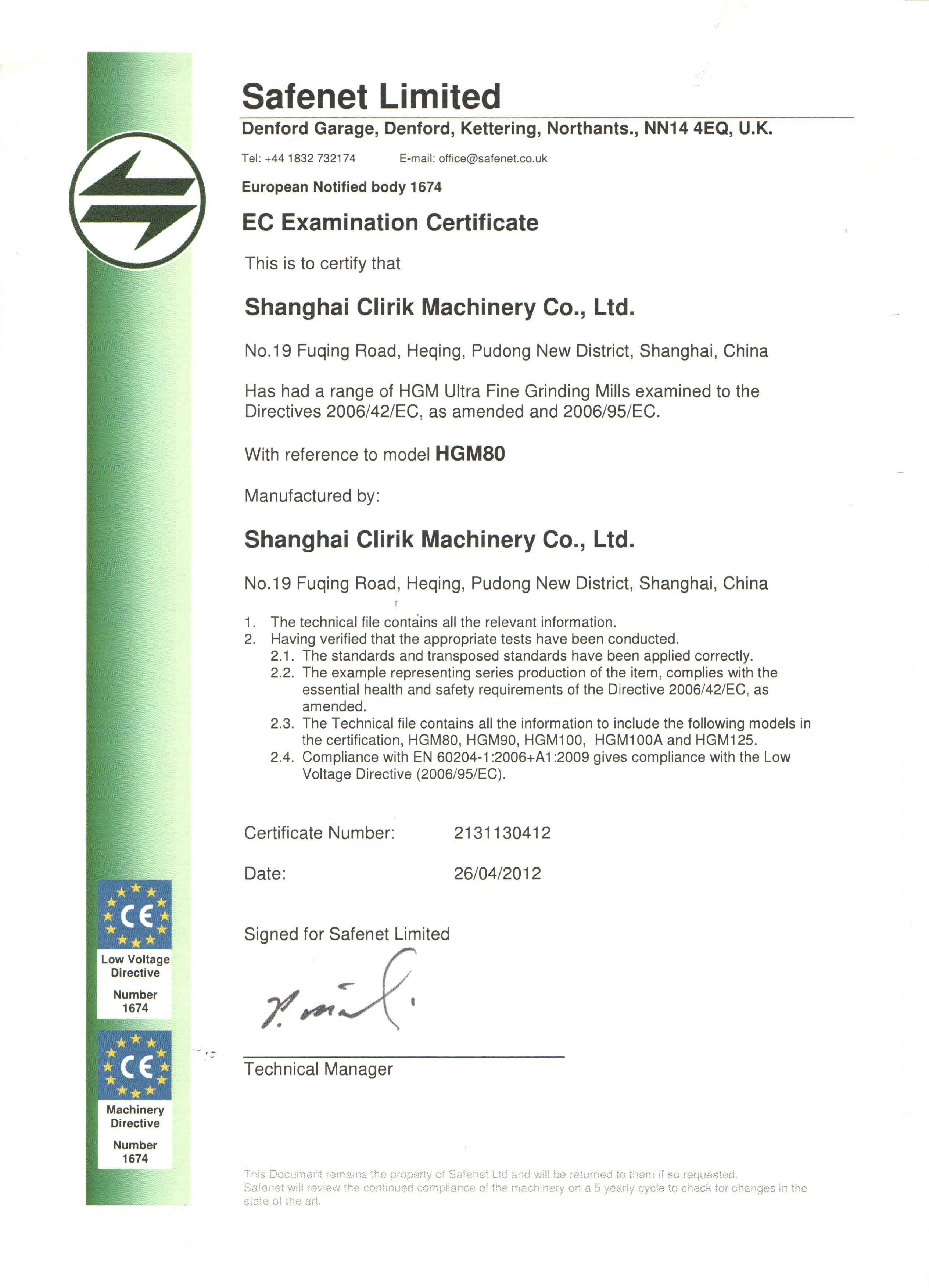

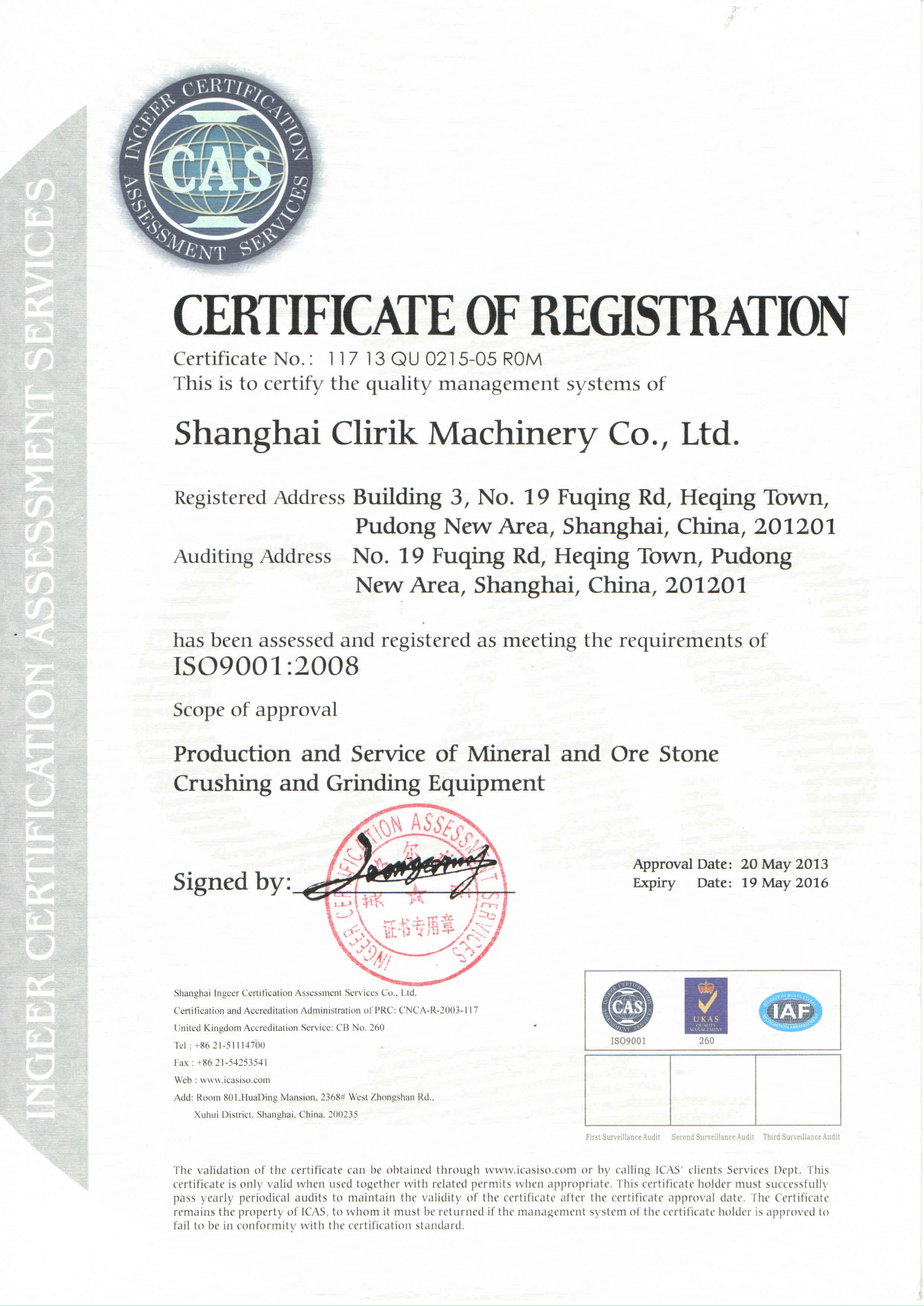

We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.
More details we needed for sending you more suitable quotation
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?
Any inquiries of our micro powder grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We look forward to your inquiries!
