Raymond Mill For Grinder Mill Process Stone Mill Machine
- Price
- US $18000-25000
- Model
- YGM
- MOQ
- 1 set
Item specifics
- Color
- as request
- Warranty
- 1 year
- Motor Brand
- Siemens
- Motor Type
- AC
- Control System
- PLC
- Feeding Size
- 20-45 mm
- Output Size
- 50-450 mesh
- Application
- minerals powder grinding
- After Sales Service
- engineer online or abroad service
- Sales Range
- worldwide
Review
Description

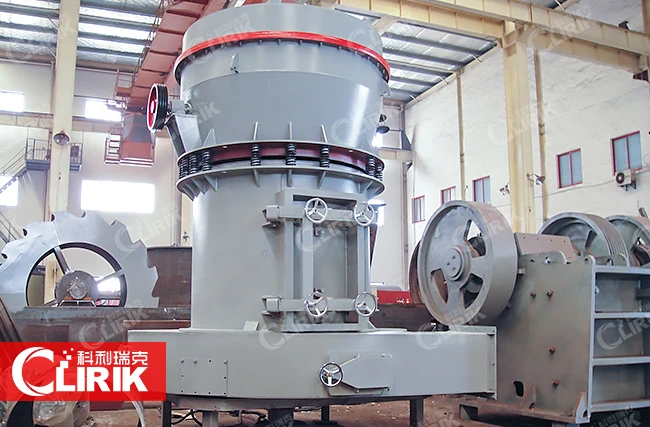

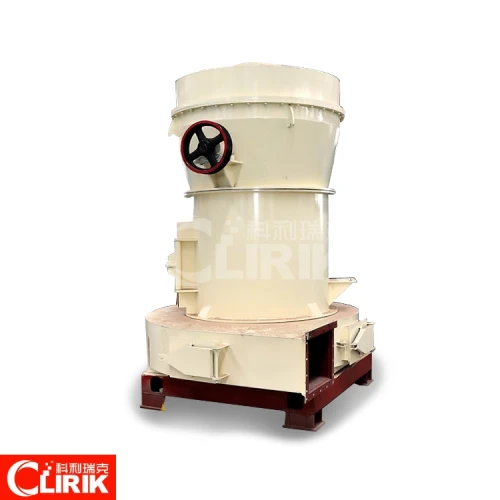

Raymond Mill For Grinder Mill Process Stone Mill Machine
Introduction of Raymond Mill For Grinder Mill Process Stone Mill Machine
Model: YGM&MTM series
Brand: Clirik
Powder Fineness Process Ability: 50-450 mesh
Capacity: according to your demand about powder fineness, the finial capacity can be adjusted between 0.5-20 t/h
Working principle of Raymond Mill For Grinder Mill Process Stone Mill Machine
The rollers tightly rolled on the ring under the effect of centrifugal force. Shovel sends material between the roller and ring and the material is grinded into powder under the high pressure.Then the fan blows the power up into the analyzer. At this time, the power material met the fineness requirement get through the analyzer and get into the power cyclone separator while the others will be sent back for re-grinding.The whole system is airtight circulation.
Structure of Raymond Mill For Grinder Mill Process Stone Mill Machine
Raymond mill is mainly composed of main unit, analyzer, fan, dischargeing cyclone separator, powder cyclone separator and air duct. Among them, the main unit consists of frame, blow shell, shovel, grinding roller and grinding ring.
Advantage of Raymond Mill For Grinder Mill Process Stone Mill Machine
1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.
Parameter Data of Raymond Mill For Grinder Mill Process Stone Mill Machine
| Model | Roller | Ring | Feeding Size (mm) | Finished Size (mm) | Mill System Power (KW) | Capacity (t/h) | Overall Dimension (mm) | |||
| Quantity (piece) | Diameter (mm) | Height (mm) | Inner Diameter (mm) | Height (mm) | ||||||
| YGM7815 | 3 | 260 | 150 | 780 | 150 | 15 | 0.613-0.033 | 35.7 | 1-3 | 4300*3500*5100 |
| YGM9517 | 4 | 310 | 170 | 950 | 170 | 25 | 0.613-0.033 | 72.65 | 2.1-5.6 | 7100*5900*7900 |
| YGM1280 | 3 | 370 | 240 | 1170 | 240 | 20 | 0.613-0.033 | 145.15 | 4.5-12 | 9300*5600*8200 |
| YGM1300 | 4 | 410 | 280 | 1270 | 280 | 20 | 0.613-0.033 | 202.15 | 6.5-16 | 9100*8200*8400 |
| YGM1620 | 4 | 450 | 300 | 1500 | 300 | 20 | 0.613-0.033 | 322.2 | 8-20 | 12500*5700*10500 |
| YGM1720 | 4 | 510 | 300 | 1720 | 300 | 35 | 0.613-0.033 | 450 | 10.5-28 | 11550*9500*10500 |

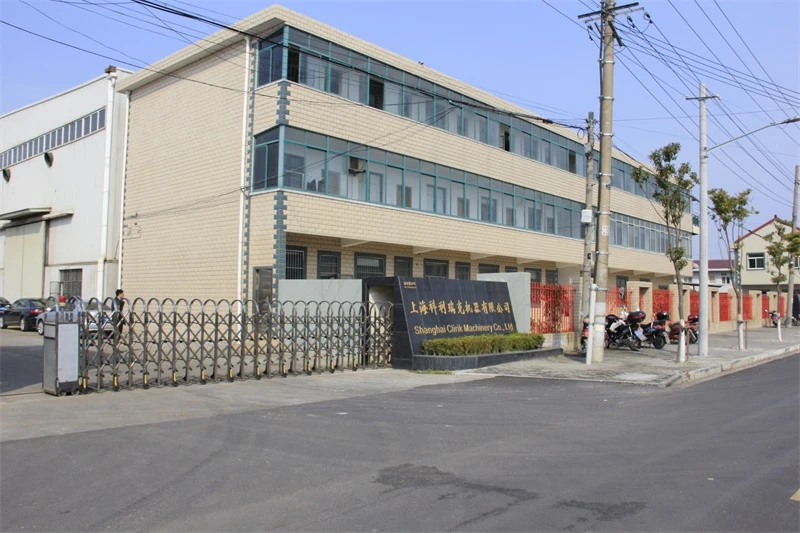

Company Information
SHANGHAI CLIRIK MACHINERY CO., LTD located in PUDONG New district of Shanghai china as a professional enterprise, which is specializing in research, manufacture and sales of all kinds of mining equipment. we have established a whole production chain, the products covermicro powder grinding mill, high pressure grinding mill, European version coarsegrinding mill, hammer crusher, jaw crusher, screw conveyor, bucket elevator and so on.Specially we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front.

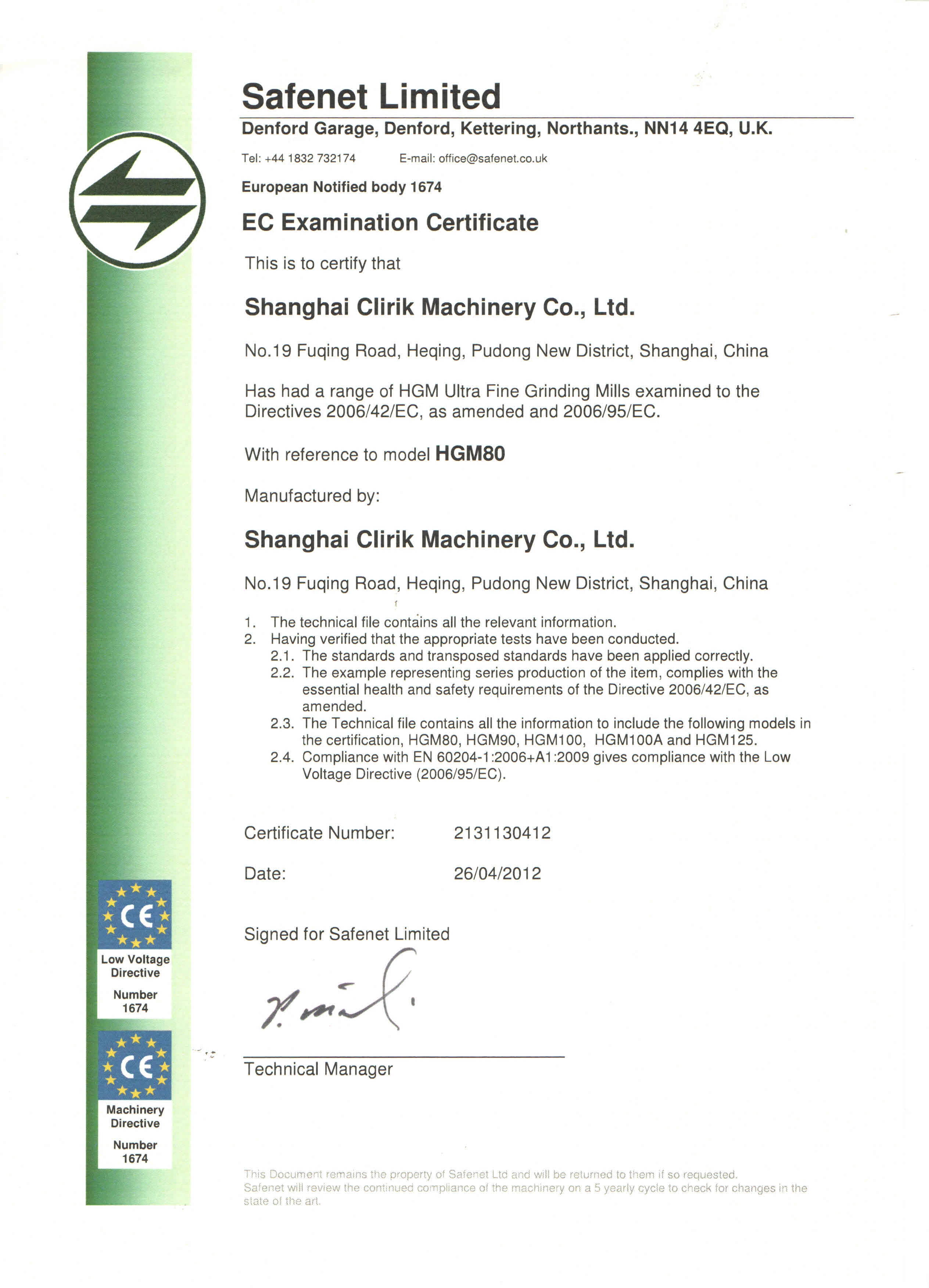

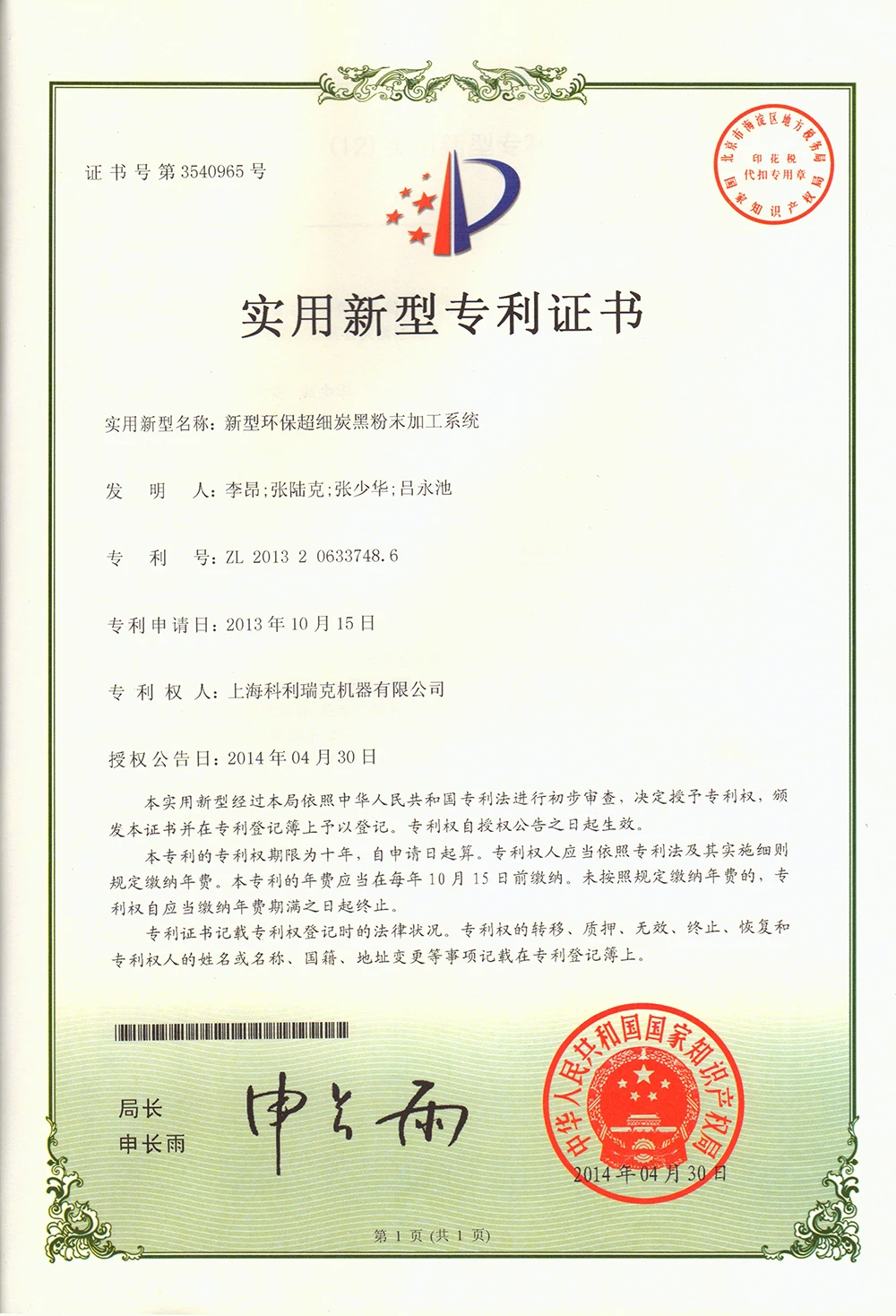

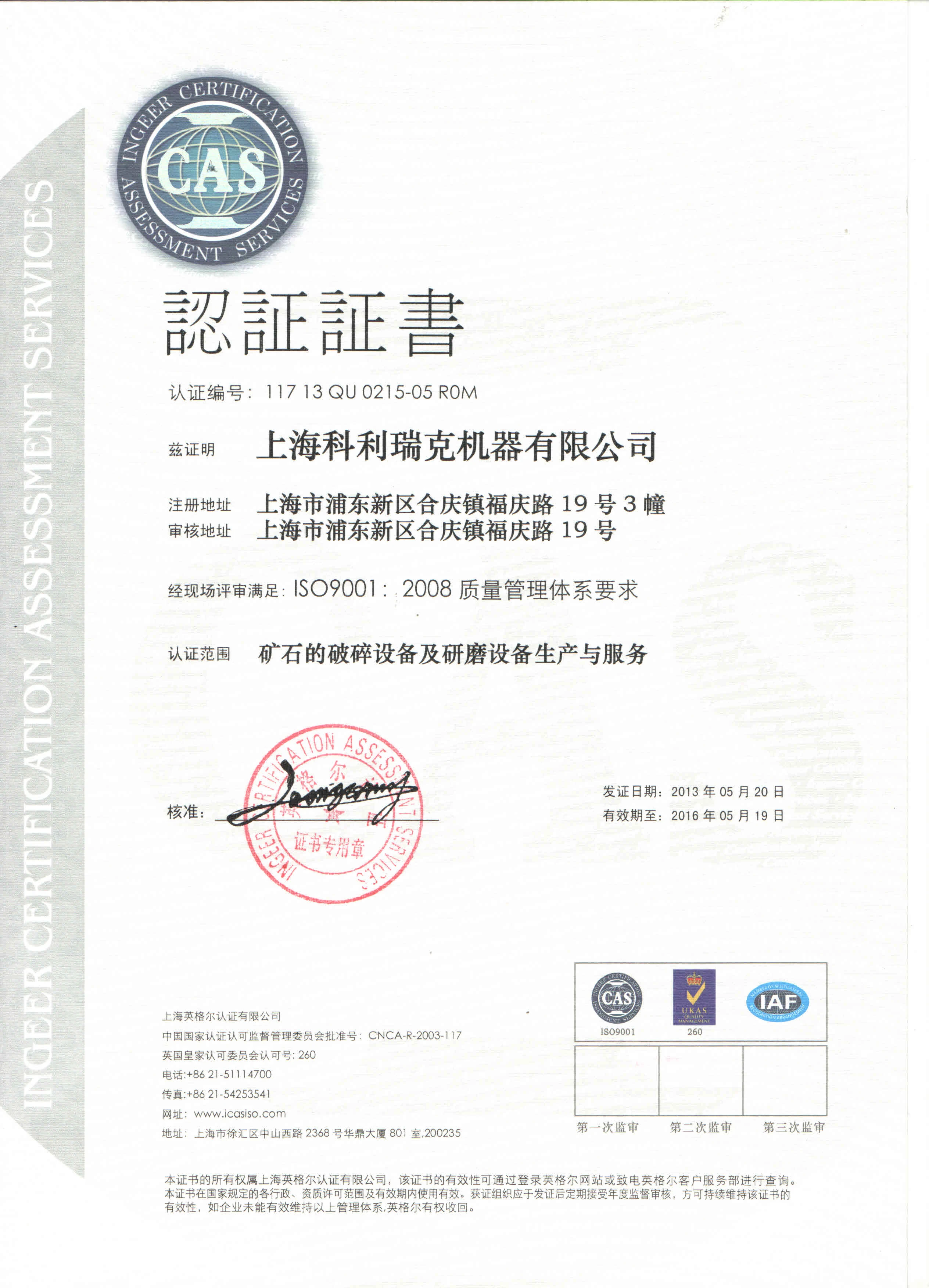

Certification
Customer visit
we independently developed HGM micro powder grinding mill, which are not only renowned in domestic market, but also have been sold widely in Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, and America, etc.

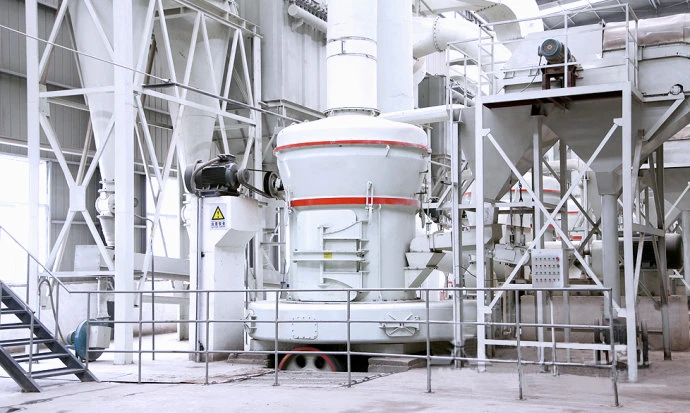

Work Site
We still insist on the communication and cooperation with prestigious scientific research institutions from both home and abroad to make our development ability always is in the domestic front. Based on the principle of constant innovation and quality guarantee, customer foremost, we are able to provide our customers not only the highest quality products at the most favorable price but also the most reasonable solution, such as the selection of the equipment,optimized process configuration and a full range of technical support, therefore we always follow your steps, pursue your value and achieve your benefit.
FAQ
1. What advantages does your Raymond Mill For Grinder Mill Process Stone Mill Machine ?
The main advantage of our Raymond Mill For Grinder Mill Process Stone Mill Machine over other kinds of mills is that you can grind a friable or crystalline material to 5 - 74 microns average particle size and classify in a very narrow particle size range at the same time. There are no moving parts to wear out or generate heat in our mill and no screens to plug or be punctured.
2. Can you guarantee the quality of your Raymond Mill For Grinder Mill Process Stone Mill Machine？
We have passed CE&ISO9001:2008, and our crushers have been exported to Eastern Europe, Middle East, Africa, South Asia, Southeast Asia, Oceania, America, etc.
3.How many years have you been manufacturing the machine?
8 years. Since the foudation of our company, we have been manufacturing the machine, which updated many times, now the machine runs stable and of high quality.
Inquiry Service
More details we needed for sending you more suitable quotation
1. What kind of raw material do you want to process?
2. What is the capacity per hour do you need?
3. What is the raw material input size?
4. What is the finished size you required?
Any inquiries of our micro powder grinding mill will be highly regard and we will give you the best quotation ASAP. Your satisfaction is our final ann forever pursuit.
Please fill in your need products and your message and do not forget email and/or phone if you like to be contacted.
We look forward to your inquiries!
